Gibbsโ€™ phase rule

Introduction to Materials Science and Engineering
4 Mar 201831:44
EducationalLearning
32 Likes 10 Comments

TLDRThe video script delves into the Gibbs phase rule, a fundamental principle in phase diagrams. It explains the relationship between the number of phases (P), components (C), and degrees of freedom (F) in an alloy system. The rule is articulated as F = C - P + 2 (or 1, if pressure is constant), highlighting how equilibrium conditions limit variable specification. Illustrated with examples, the script clarifies how degrees of freedom decrease with more phases, culminating in invariant reactions like the eutectic point, where all variables are fixed.

Takeaways
  • ๐Ÿ“š The Gibbs phase rule is a fundamental principle in phase diagrams that relates the number of phases in equilibrium to the number of components in a system.
  • ๐Ÿ” The degrees of freedom (F) is defined as the number of thermodynamic variables that can be independently specified without changing the phases in equilibrium.
  • ๐ŸŒก๏ธ Thermodynamic variables for Gibbs phase rule include pressure and temperature, and in some cases, composition variables such as phase compositions.
  • ๐Ÿงฉ The phase compositions are the relevant composition variables for the application of Gibbs phase rule, not the overall alloy composition.
  • ๐Ÿ“‰ If there are C components in an alloy, to specify the composition of a phase, C-1 composition variables are needed, as the last component can be derived from the others.
  • ๐Ÿ”ข The total number of variables (V) is calculated as P*(C-1) plus the number of thermodynamic variables (2 for pressure and temperature, or 1 if pressure is constant).
  • โš–๏ธ The degrees of freedom (F) is calculated as the number of components minus the number of phases plus 2 (or 1 if pressure is constant).
  • ๐Ÿ’ง In a single phase equilibrium, the degrees of freedom allow for the independent specification of both the phase composition and temperature.
  • ๐ŸŒ In a two-phase equilibrium, the degrees of freedom decrease to 1, meaning only one variable can be freely specified, with the others determined by equilibrium conditions.
  • ๐Ÿ”ฎ In a three-phase equilibrium, the degrees of freedom are zero, indicating that all variables are fixed and cannot be independently changed.
  • ๐Ÿ“‰ The eutectic reaction, where three phases coexist at a fixed temperature and composition, is an example of an invariant reaction with zero degrees of freedom, represented by a horizontal line in phase diagrams.
Q & A
  • What is the Gibbs phase rule?

    -The Gibbs phase rule is a fundamental principle in thermodynamics that relates the number of phases in equilibrium (P), the number of components in a system (C), and the degrees of freedom (F). It helps to determine the number of independent variables that can be specified without changing the equilibrium state of a system.

  • What are the thermodynamic variables considered in the Gibbs phase rule?

    -The thermodynamic variables considered in the Gibbs phase rule are pressure and temperature, as well as the composition variables, specifically the phase compositions. The overall alloy composition is not considered a variable unless it is also the phase composition in a single phase equilibrium.

  • How are the degrees of freedom defined in the context of the Gibbs phase rule?

    -The degrees of freedom (F) are defined as the number of thermodynamic variables that can be specified independently without changing the phases in equilibrium. It is determined by the equilibrium conditions between the variables.

  • What is the formula for calculating the degrees of freedom according to the Gibbs phase rule?

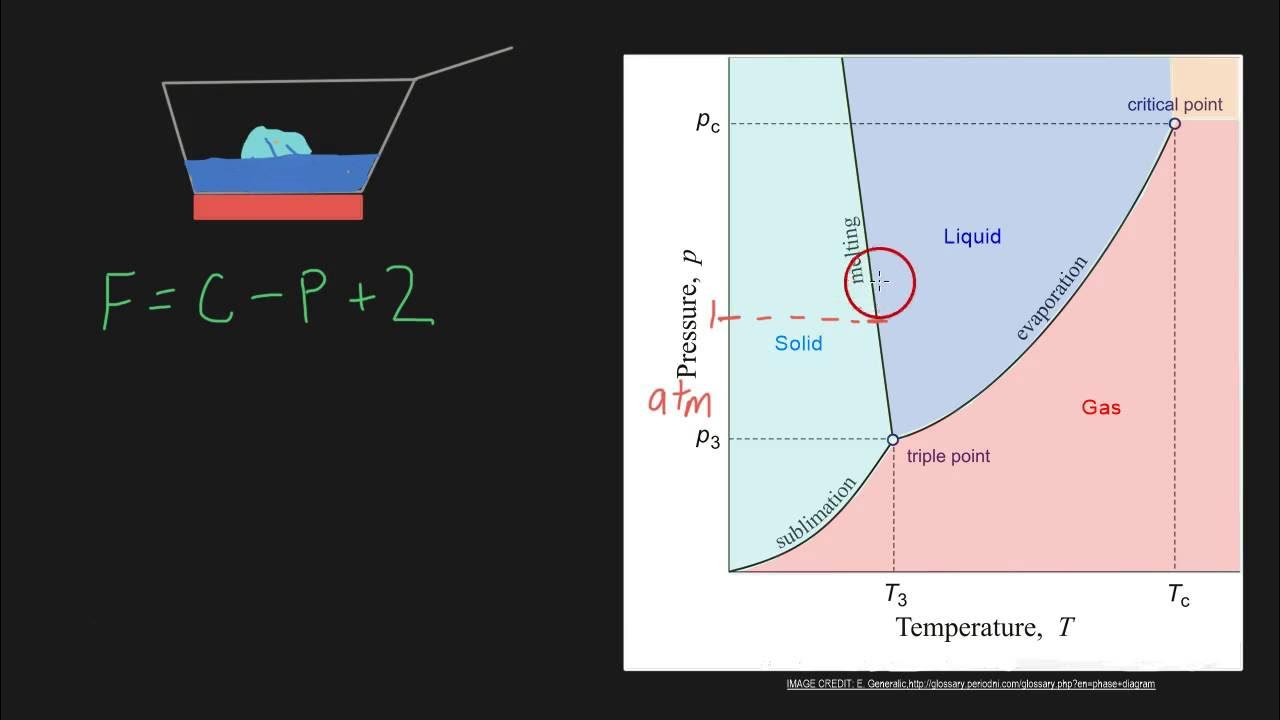

    -The formula for calculating the degrees of freedom (F) according to the Gibbs phase rule is F = C - P + 2, where C is the number of components and P is the number of phases in equilibrium. If pressure is fixed, the formula becomes F = C - P + 1.

  • How many composition variables are needed for a phase with C components?

    -For a phase with C components, you need C - 1 composition variables because the composition of the last component can be found by 1 minus the sum of the other compositions.

  • What is the significance of the number of composition variables in relation to the number of phases?

    -The total number of composition variables needed is P times (C - 1), where P is the number of phases. This is because for each phase, you need to specify the composition of C - 1 components.

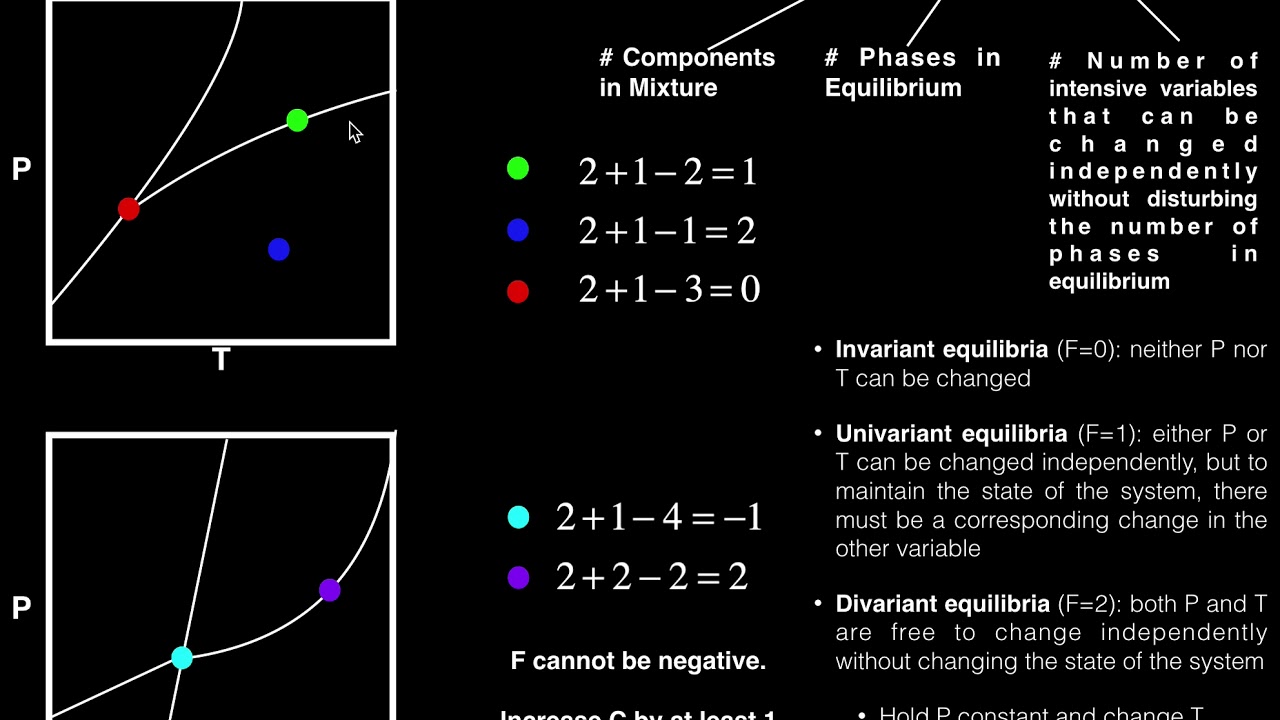

  • What happens to the degrees of freedom when the number of phases increases?

    -As the number of phases increases, the degrees of freedom generally decrease because more variables are determined by the equilibrium conditions, leaving fewer variables that can be specified independently.

  • What is an example of a single phase equilibrium in the context of the Gibbs phase rule?

    -An example of a single phase equilibrium is a single phase liquid in equilibrium, where the variables are the liquid composition (C_L) and temperature (T). According to the Gibbs phase rule, you have 2 degrees of freedom, meaning you can independently specify both the liquid composition and the temperature.

  • How does the Gibbs phase rule apply to a two-phase equilibrium like liquid plus alpha?

    -In a two-phase equilibrium like liquid plus alpha, you have 3 variables (compositions of both phases and temperature), but the degrees of freedom is only 1. This means you can specify one variable (either temperature or one of the compositions), and the other two will be determined by the equilibrium conditions.

  • What is the significance of zero degrees of freedom in a three-phase equilibrium?

    -Zero degrees of freedom in a three-phase equilibrium indicates that there are no independent variables that can be specified without changing the equilibrium state. All variables, including the compositions of each phase and the temperature, are fixed at specific values, which is characteristic of an invariant reaction, such as the eutectic reaction.

  • Why is the eutectic reaction considered an invariant reaction in a phase diagram?

    -The eutectic reaction is considered an invariant reaction because it represents a three-phase equilibrium with zero degrees of freedom. The compositions of the phases and the temperature are fixed and cannot be varied independently, which is why it is represented by a horizontal line in a phase diagram.

Outlines
00:00
๐Ÿ” Introduction to Gibbs Phase Rule

The script begins with an introduction to the Gibbs phase rule, a fundamental concept in phase diagrams. It explains the relationship between the number of phases (P), the number of components (C), and the degrees of freedom (F). The concept of thermodynamic variables, including pressure, temperature, and phase compositions, is discussed, with an emphasis on their role in phase equilibrium. The script clarifies that only phase compositions are considered as variables for the Gibbs phase rule, while overall alloy composition is not a variable unless in a single phase equilibrium.

05:35
๐Ÿ“š Understanding Composition Variables and Degrees of Freedom

This paragraph delves into the specifics of composition variables, explaining that for C components, one needs to specify C-1 compositions for each phase, as the last component can be derived from the others. The total number of variables (V) is calculated as P times (C-1) plus the number of thermodynamic variables, which can be either 2 (pressure and temperature) or 1 (if pressure is constant). The degrees of freedom are then introduced as the number of thermodynamic variables that can be independently specified without altering the equilibrium of phases.

10:50
๐Ÿ“‰ Defining Degrees of Freedom and Gibbs Phase Rule

The script defines degrees of freedom as the number of thermodynamic variables that can be independently set without changing the equilibrium of phases. It explains that equilibrium conditions limit the number of variables that can be freely specified. The Gibbs phase rule is then presented in its formulaic form, F = C - P + 2, which accounts for both pressure and temperature as variables. The rule is simplified for cases where pressure is fixed, changing the formula to F = C - P + 1.

16:23
๐Ÿ“ˆ Applying Gibbs Phase Rule to Phase Diagrams

The script applies the Gibbs phase rule to a binary phase diagram, specifically the lead-tin diagram, to illustrate its practical use. It discusses single phase equilibrium, where the degrees of freedom allow for the independent specification of liquid composition and temperature. The example demonstrates how the phase rule can be used to understand the conditions for phase equilibrium in a system with varying components and phases.

21:29
๐Ÿ”„ Transition to Multiphase Equilibrium and Its Implications

This paragraph explores the implications of the Gibbs phase rule in multiphase equilibrium, starting with a two-phase equilibrium (liquid plus alpha). It explains how the degrees of freedom decrease as the number of phases increases, limiting the variables that can be independently specified. The script uses the lead-tin diagram to illustrate how specifying temperature fixes the compositions of both phases along the tie line, highlighting the constraints imposed by phase equilibrium.

26:32
๐ŸŒก๏ธ Invariant Reactions and the Concept of Eutectic

The final paragraph discusses the concept of invariant reactions, such as the eutectic reaction, where three phases coexist in equilibrium with zero degrees of freedom. It explains that in such cases, all variables, including compositions and temperature, are fixed. The script uses the eutectic line in the phase diagram to demonstrate this point, emphasizing that invariant reactions are represented by horizontal lines in binary phase diagrams.

Mindmap
Keywords
๐Ÿ’กGibbs phase rule
The Gibbs phase rule is a fundamental principle in thermodynamics that defines the relationship between the number of phases, components, and degrees of freedom in a system at equilibrium. In the video, it is central to understanding phase diagrams, as it helps predict the behavior of different materials under varying conditions. The rule is applied to determine how many variables can be independently changed without affecting the equilibrium state of a system.
๐Ÿ’กPhases
Phases refer to the distinct states of matter that a substance can exist in, such as solid, liquid, or gas. In the context of the video, the number of phases in equilibrium is crucial for applying the Gibbs phase rule. The script discusses how different phases, like liquid and alpha or beta phases in a lead-tin alloy, interact and coexist at certain temperatures and compositions.
๐Ÿ’กComponents
Components are the different chemical substances that make up a system. In the script, the number of components in an alloy system, such as lead and tin, is used in the Gibbs phase rule to calculate the degrees of freedom. The concept is essential for understanding how varying the composition of a system can affect its phase behavior.
๐Ÿ’กDegrees of freedom
Degrees of freedom in the context of the Gibbs phase rule represent the number of independent variables that can be changed without disturbing the equilibrium of a system. The script explains that these degrees of freedom are constrained by the number of phases and components present, and they dictate how many variables, such as temperature or composition, can be independently adjusted.
๐Ÿ’กThermodynamic variables
Thermodynamic variables are properties of a system that can describe its state, such as pressure and temperature. The video script emphasizes that these variables are critical for the Gibbs phase rule, as they can either be fixed or variable, depending on the system. For example, in many phase diagrams, pressure is assumed to be constant, making temperature the primary variable.
๐Ÿ’กPhase compositions
Phase compositions refer to the specific ratios or fractions of components within each phase of a system. The script explains that when applying the Gibbs phase rule, only the phase compositions are considered as variables, not the overall alloy composition, unless it coincides with the phase composition in a single-phase equilibrium.
๐Ÿ’กEquilibrium conditions
Equilibrium conditions are the states where the system does not change over time because the rates of opposing processes are equal. In the video, these conditions are what define the degrees of freedom, as they establish the relationships between the thermodynamic variables that must be met for the phases to coexist in balance.
๐Ÿ’กBinary phase diagram
A binary phase diagram is a graphical representation of the phase behavior of a two-component system as a function of temperature and composition. The script uses the lead-tin diagram as an example to illustrate how the Gibbs phase rule can be applied to understand the equilibrium between different phases at various temperatures and compositions.
๐Ÿ’กInvariant reaction
An invariant reaction, such as the eutectic reaction discussed in the script, is a type of phase transition where the degrees of freedom are zero. This means that all variables, including temperature and compositions of all phases, are fixed at the point of the reaction. The eutectic line in a phase diagram represents such an invariant reaction, where liquid, alpha, and beta phases coexist at a specific temperature and composition.
๐Ÿ’กEutectic
Eutectic refers to the lowest temperature at which a mixture of different phases can coexist in equilibrium. In the script, the eutectic point is used to demonstrate a three-phase equilibrium where the compositions of the liquid, alpha, and beta phases, as well as the temperature, are all fixed due to the invariant nature of the eutectic reaction.
Highlights

Introduction to Gibbs phase rule and its importance in phase diagrams.

Definition of the key terms: number of phases (P), number of components (C), and degrees of freedom (F).

Explanation of thermodynamic variables relevant to Gibbs phase rule: pressure, temperature, and phase compositions.

Clarification that overall alloy composition is not a variable in Gibbs phase rule unless it equals phase composition.

The formula for calculating the number of composition variables based on the number of components in a phase.

Total number of variables (V) calculation including composition variables and thermodynamic variables like pressure and temperature.

Definition of degrees of freedom as the number of thermodynamic variables that can be specified independently without changing the equilibrium.

The rule for degrees of freedom F: F = C - P + 2 (if both pressure and temperature are variables).

Special case of the Gibbs phase rule when pressure is fixed, leading to F = C - P + 1.

Application of Gibbs phase rule to a binary phase diagram, assuming pressure is constant at 1 atmosphere.

Example of single phase equilibrium and how the degrees of freedom allow for variation of both composition and temperature.

Analysis of two-phase equilibrium (liquid plus alpha) and the resulting decrease in degrees of freedom to one.

Explanation of how specifying temperature in a two-phase equilibrium determines the compositions of both phases.

Three-phase equilibrium scenario and the resulting zero degrees of freedom, indicating fixed compositions and temperature.

The eutectic reaction as an example of an invariant reaction with zero degrees of freedom, where all variables are fixed.

Identification of horizontal lines in binary phase diagrams as indicative of invariant reactions.

Further discussion on invariant reactions and their significance in phase diagrams.
