8.01x - Lect 28 - Hydrostatics, Archimedes' Principle, Bernoulli's Equation
TLDRIn this engaging lecture, the principles of buoyancy and fluid dynamics are explored through the lens of Archimedes' Principle and Bernoulli's Equation. The่ฎฒๅธ demonstrates how the buoyant force relates to the weight of displaced fluid, using examples such as floating ice and the stability of ships. The concept of fluid velocity affecting pressure is introduced, with the lecturer showing how a siphon works and the conditions under which it operates. The lecture also includes a fun experiment involving a Ping-Pong ball and airflow, illustrating the non-intuitive nature of fluid dynamics.
Takeaways
- ๐บ Archimedes' Principle states that the buoyant force on an immersed body is equal to the weight of the fluid displaced by the body.
- ๐ For an object to float, the buoyant force must equal the gravitational force (Mg), and the object's density must be less than the fluid's density.
- ๐ข The stability of floating objects, like ships, depends on the relative positions of the center of mass and the center of buoyancy.
- ๐ In a balloon, the buoyant force is the weight of the displaced air, and the balloon rises if the gas inside is less dense than the surrounding air.
- ๐ In a non-gravity environment, without weight, neither the apple nor the helium balloon would exhibit the behaviors they do under Earth's gravity.
- ๐ In an accelerating environment, the perceived gravity can cause opposite behaviors to what is observed under gravity, such as the balloon moving in the direction opposite to the acceleration.
- ๐ช๏ธ Bernoulli's Equation relates the kinetic energy, potential energy, and pressure of a fluid, stating that the sum of these energies per unit volume remains constant along a streamline.
- ๐ The principle of the siphon relies on Bernoulli's Equation, where potential energy is converted into kinetic energy, allowing liquid to flow against gravity.
- ๐ Blowing air into a narrow passage increases the velocity and decreases the pressure, which can cause a Ping-Pong ball to be held against the flow rather than being blown away.
- ๐ก The non-intuitive behaviors of fluids, such as the siphon or the balloon's movement in an accelerating car, demonstrate the importance of understanding fluid dynamics and the principles that govern them.
Q & A
What is the principle that describes the buoyant force on an immersed body?
-Archimedes' principle states that the buoyant force on an immersed body is equal in magnitude to the weight of the fluid that the body displaces.
How did Archimedes determine the purity of a crown?

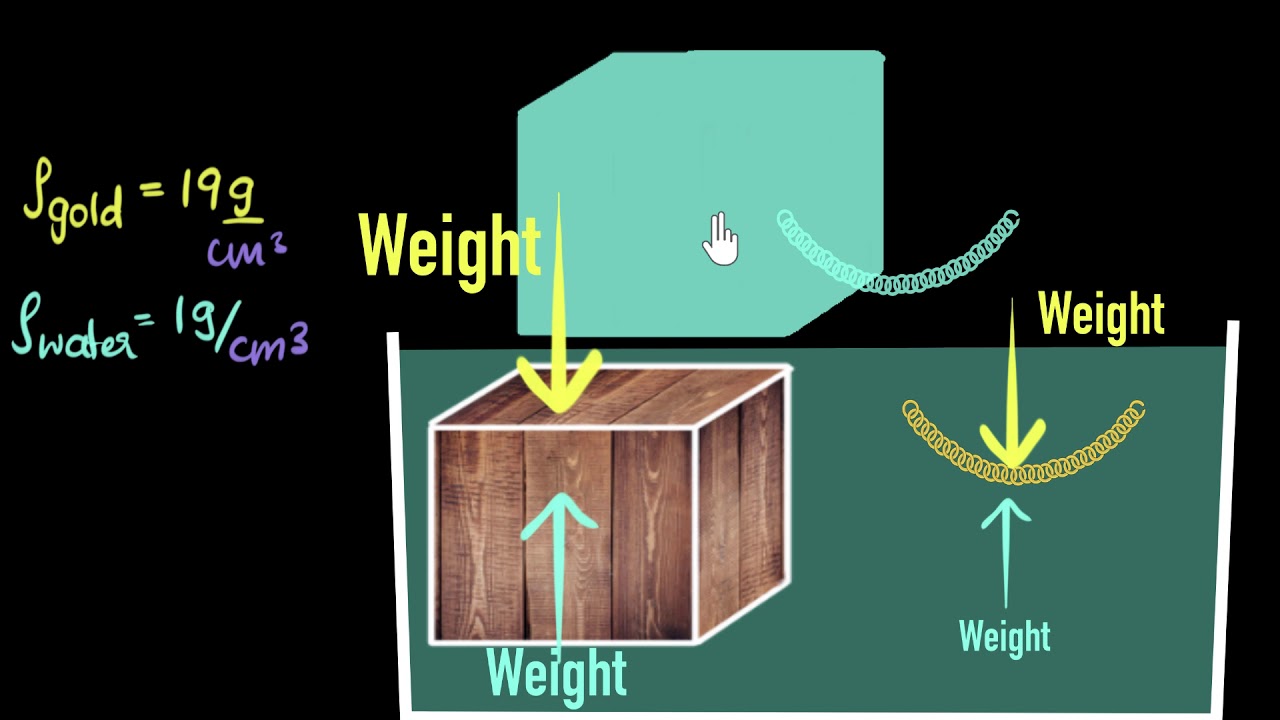

-Archimedes used the principle of buoyancy to determine the purity of a crown by weighing it in air and then weighing it while submerged in water, comparing the weight loss to calculate the density of the crown.
What is the relationship between the volume of an iceberg underwater and the density of ice and water?
-The volume of an iceberg underwater divided by its total volume is equal to the ratio of the density of ice to the density of water, which is 0.92, indicating that approximately 92% of an iceberg is underwater.
What is the condition for an object to float?
-An object will float if the buoyant force, which is the weight of the displaced fluid, is equal to the gravitational force (Mg) acting on the object, and this requires that the fluid's density be greater than the object's density.
How does the center of mass of a floating object affect its stability?
-The stability of a floating object is affected by the relative position of its center of mass to the center of buoyancy. If the center of mass is lower, the object is more stable as any tilt generates a restoring torque. If the center of mass is higher, the object is less stable and can capsize more easily.
What is the criterion for a balloon to rise?
-A balloon will rise if the buoyant force, which is the weight of the displaced air, is greater than the gravitational force (Mg) acting on the balloon. This requires that the density of the gas inside the balloon be less than the density of the surrounding air.
How does Bernoulli's equation relate kinetic energy, potential energy, and pressure in a fluid?
-Bernoulli's equation states that the sum of the kinetic energy per unit volume, the gravitational potential energy per unit volume, and the pressure at a given point in a fluid remains constant along a streamline, assuming the fluid is incompressible and non-viscous.
What is the maximum height a siphon can raise water due to atmospheric pressure limitations?
-Due to atmospheric pressure limitations, a siphon can raise water to a maximum height of approximately 10 meters, as this is the height at which the atmospheric pressure can support a column of water.
Why does blowing hard into a narrow neck of a funnel with a Ping-Pong ball on top not lift the ball?
-Blowing hard into the funnel increases the velocity of the air at the narrowest point, which according to Bernoulli's principle, decreases the pressure at that point. The lower pressure causes the Ping-Pong ball to be sucked down and held in place rather than being lifted out.
What happens to the water level in a swimming pool if a rock is thrown overboard from a boat?
-When a rock is thrown overboard from a boat, the water level in the swimming pool will initially rise due to the displacement of water by the rock. However, as the rock sinks and comes to rest, the water level will eventually return to its original position.
How does the stability of a ship relate to the position of its center of mass?
-The stability of a ship is greatly influenced by the position of its center of mass. A ship is most stable when its center of mass is as low as possible, which lowers the center of buoyancy and reduces the likelihood of capsize. Conversely, a high center of mass can make the ship more susceptible to tipping over.
Outlines
๐ Buoyancy and Archimedes' Principle
This paragraph discusses the concept of buoyancy and Archimedes' principle. It explains how an object floats in a liquid by displacing a volume of fluid equal to its own weight. The principle states that the buoyant force on an immersed body is equal to the weight of the fluid displaced by the body. The explanation includes a detailed breakdown of the forces acting on a floating cylinder, including gravitational force, buoyant force, and atmospheric pressure. It also delves into the historical account of Archimedes discovering the principle and its application in determining the density of irregularly shaped objects, such as the famous story of the golden crown.
๐โโ๏ธ The Iceberg and Buoyancy
This section uses the example of an iceberg to illustrate the principles of buoyancy and stability. It explains how the visible part of an iceberg represents only a small fraction of its total mass, with the majority submerged due to the lower density of ice compared to water. This principle is linked to the tragic sinking of the Titanic, highlighting the danger of underestimating the size of an iceberg. The paragraph also discusses the conditions for an object to float, emphasizing that the volume submerged must be less than the total volume of the object for it to remain afloat. The concept of stability in floating objects, particularly ships, is introduced, noting the importance of the center of mass in relation to the displaced fluid's center.
๐ข Stability and Center of Mass
This paragraph delves deeper into the stability of floating objects, focusing on the relationship between the center of mass and the center of buoyancy. It explains that for an object to be stable, the center of mass must be lower than the center of buoyancy. The paragraph uses the example of a ship to illustrate how a low center of mass contributes to stability, while a high center of mass can lead to capsize. The demonstration of a flipped object and its unstable equilibrium further clarifies the concept. The paragraph also touches on the application of these principles in the design of ships to ensure they remain stable even when loaded with cargo.
๐ Buoyancy and Gas Balloons
This section introduces the concept of buoyancy as it applies to gas balloons, comparing it to objects floating in a liquid. It outlines the conditions for a balloon to rise, which is when the buoyant force (the weight of the displaced air) is greater than the gravitational force (the weight of the balloon and its contents). The paragraph explains that the density of the gas inside the balloon must be less than the density of the surrounding air for the balloon to rise. It also presents a thought experiment involving a pendulum with an apple and a helium-filled balloon in a zero-gravity environment, demonstrating that without gravity, neither the apple nor the balloon would exhibit the behaviors we observe under normal Earth conditions.
๐ Perceived Gravity and Fluid Dynamics
This paragraph explores the concept of perceived gravity and its impact on the behavior of fluids and gas balloons. It uses a hypothetical scenario of accelerating in space with an apple and a helium balloon to illustrate how the balloon moves in the opposite direction of the perceived gravity. The explanation includes a discussion on the creation of a pressure differential within a closed compartment, which is key to understanding why the balloon behaves as it does. The paragraph challenges the audience's intuition with a question about the direction of motion for the apple and the balloon under altered gravity conditions, setting up for a demonstration that will be conducted in the classroom.
๐ Bernoulli's Equation and Fluid Dynamics
This section introduces Bernoulli's equation, which relates kinetic energy, potential energy, and pressure in fluids. It explains how fluid dynamics can lead to nonintuitive behaviors, such as the siphon effect. The paragraph describes how a small diameter tube can create a velocity increase that results in a pressure decrease, allowing liquid to flow against gravity. It also touches on the limitations of the siphon effect due to atmospheric pressure, and provides a historical context for its use. The paragraph concludes with a demonstration of the siphon principle using a tube filled with cranberry juice, illustrating the conversion of gravitational potential energy to kinetic energy.
๐จ The Power of Airflow
This paragraph demonstrates the principles of fluid dynamics and Bernoulli's equation through a series of experiments. It starts with a fun experiment where students attempt to blow a ping-pong ball into a funnel, only to find that the harder they blow, the less effective it is. The explanation lies in the relationship between air velocity and pressureโthe higher the velocity, the lower the pressure. The paragraph then shows how a ping-pong ball can be stabilized in the center of a flowing air stream due to the lower pressure created by the air velocity. The demonstration concludes with a practical application of this principle, suggesting a Thanksgiving trick involving a glass of cranberry juice and a piece of cardboard, which defies expectations by not spilling when turned upside down.
Mindmap
Keywords
๐กArchimedes' Principle
๐กBuoyant Force
๐กDensity
๐กHydrostatic Pressure
๐กAtmospheric Pressure
๐กBarometric Pressure
๐กSiphon
๐กBernoulli's Equation
๐กFluid Dynamics
๐กStability of Ships
๐กNonintuitive
Highlights
Exploration of buoyancy and floating with a simple cylinder in a liquid, illustrating the principles of equilibrium between gravitational and buoyant forces.
Discussion of the hydrostatic pressure and its role in the buoyancy of objects submerged in a fluid, as derived from Pascal's principle.
Explanation of Archimedes' principle, which states that the buoyant force on an immersed body is equal to the weight of the fluid displaced by the body.
Historical account of Archimedes' discovery of the principle while solving the problem of determining the density of a crown for King Hieron II.
Demonstration of how the buoyancy principle applies to icebergs, explaining why only a small portion is visible above water and the significance of the tragedy of the Titanic.
Discussion on the conditions for an object to float, emphasizing that the density of the object must be less than the density of the fluid for buoyancy to occur.
Introduction to the concept of stability in floating objects, particularly in ships, and how the center of mass and displaced fluid affect stability.
Explanation of how the principle of buoyancy applies to balloons and the conditions necessary for a balloon to rise in air.
Nonintuitive demonstration of a pendulum with an apple and a helium balloon, showing the effects of gravity and buoyancy in different contexts.
Illustration of the concept of perceived gravity and how it affects the behavior of objects in an accelerating environment, such as in a car or a spaceship.
Introduction to Bernoulli's equation, which relates kinetic energy, potential energy, and pressure in moving fluids and its conservation of energy principle.
Explanation of how fluid velocity and pressure are inversely related, with higher velocities leading to lower pressures, as shown in the siphon demonstration.
Discussion on the limitations of siphoning due to atmospheric pressure, and the practical applications of siphons in everyday scenarios.
Demonstration of the nonintuitive effects of airflow and pressure differences, such as the inability to blow a Ping-Pong ball into a narrow funnel due to Bernoulli's principle.
Practical application of Bernoulli's principle in the form of a Thanksgiving trick involving a glass of cranberry juice and a piece of cardboard.
